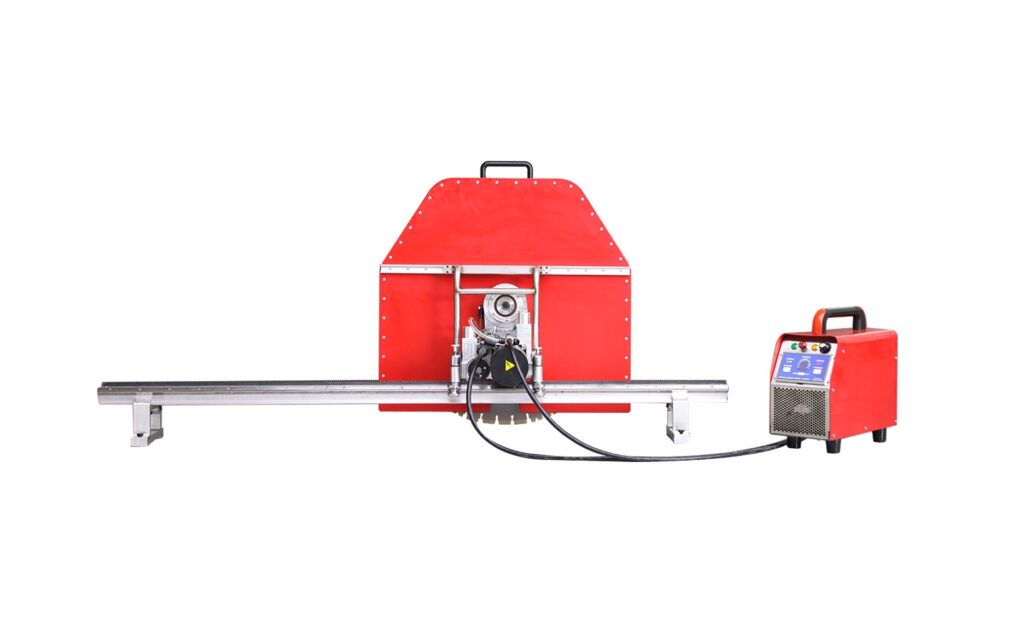

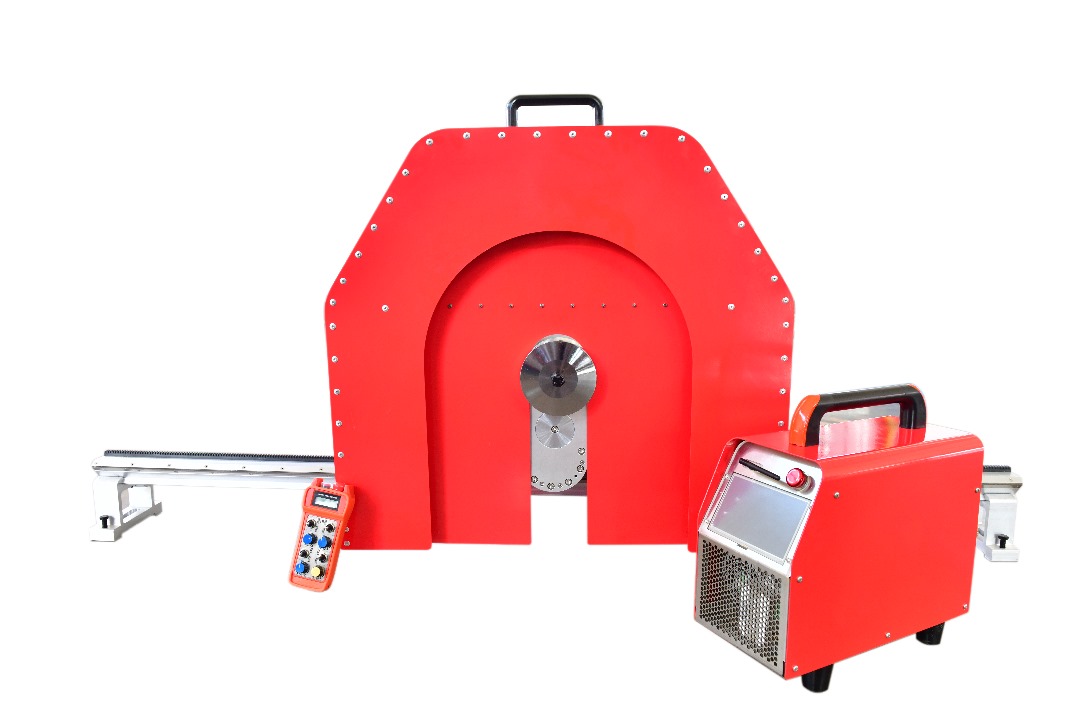

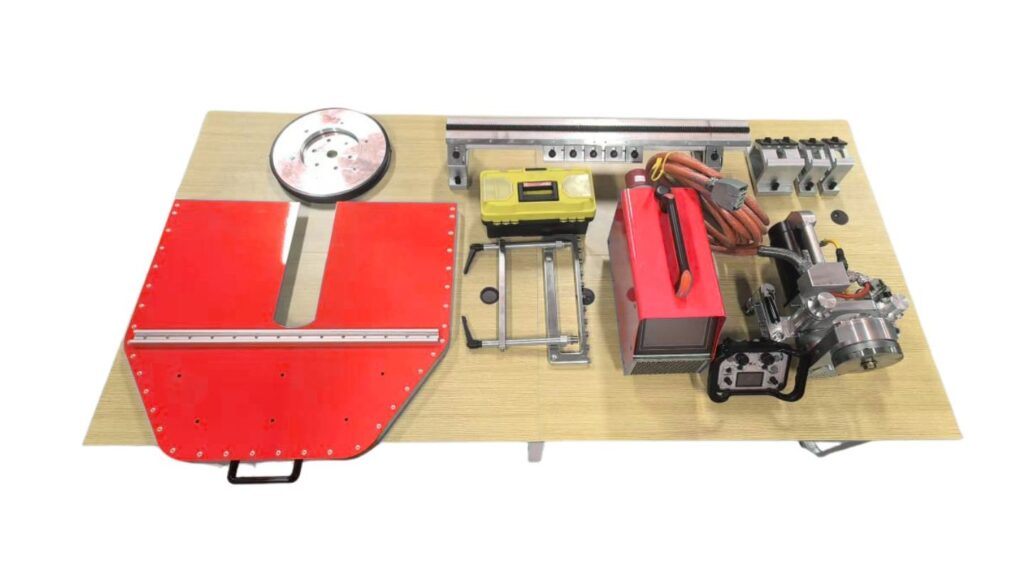

Wall Saw & Wire Saw Combo Machine for Concrete Cutting

The Wall Saw & Wire Saw Combo Machine is a high-performance, 2-in-1 concrete cutting solution designed for heavy-duty construction and demolition applications. Engineered with advanced high-frequency technology, this machine delivers powerful, precise, and vibration-free cutting performance even in thick reinforced concrete structures.

This combo system allows operators to perform both wall cutting and wire sawing operations using a single integrated setup, making it a cost-effective and versatile solution for contractors and infrastructure projects.

Key Features:

High-frequency motor for powerful and stable performance
Compatible with single-phase 220V and three-phase 380V power supply
Smooth forward/reverse operation with stepless speed control
Built-in edge-adjacent cutting function
Maximum cutting depth up to 720 mm (depending on blade size)
Wireless remote control with LCD display
Automatic track travel and feed cutting system
Overload, over-temperature, over-voltage, and under-voltage protection
Water-cooled cutting head for efficient operation

Applications:

RCC wall and slab cutting
Bridge and flyover dismantling
Beam and column cutting
Industrial demolition projects
Structural modification and expansion work

The Wall Saw & Wire Saw Combo Machine ensures high efficiency, reduced downtime, low maintenance, and long service life, making it an ideal choice for professional concrete cutting contractors.

Technical Specifications

Motor & Power

  • Maximum Continuous Output Power: 24 kW
  • Main Motor Output Current: 10–50 A
  • Power Supply Compatibility:
    • Single-phase 220V – 50Hz
    • Three-phase 380V – 50Hz
  • Power Conversion: Direct switching via conversion switch

saw Blade System

  • Installation Hole Diameter: φ35 / φ50 / φ60 (fully compatible)
  • Direct Installation Size: φ200 mm – φ850 mm
  • Allowable Blade Size: φ200 mm – φ1600 mm
  • Maximum Cutting Depth: 720 mm
  • Cutting Depth Formula: (Blade Diameter – 160 mm) ÷ 2
  • Blade Rotation Speed: 0–960 rpm
  • Speed Control: Forward / Reverse / Stepless speed regulation
  • Edge-Adjacent Cutting: Built-in full edge-adjacent function

Control System

  • Control Method: Wireless remote control
  • Display System:
    • Main Unit: 7-inch color LCD touch screen
    • Remote: 3-inch black & white LCD
  • Automatic Function:
    • Track travel cutting
    • Rotating arm feed cutting
    • Automatic program control (cruise control)

🛡 Protection Features

  • Main motor overload protection
  • Auxiliary motor overload protection
  • Over-temperature protection
  • Over-voltage & under-voltage protection

Cooling System

  • Cutting Head Cooling: Water cooling
  • Minimum Water Consumption (10°C): 5 L/min
  • Control Box Cooling: Forced air cooling

⚖ Weight & Dimensions

Cutting Head (including motor)

  • Weight: 37.5 kg
  • Packing Size: 510 × 380 × 380 mm

Control Box

  • Weight: 16 kg
  • Size: 565 × 225 × 390 mm

🛤 Track System

  • Material: High-strength industrial aluminum alloy
  • Weight: 8.4 kg/m
  • Track Sizes: 1m & 2m

🛠 Saw Blade Cover

  • Standard Cover Size: φ900
  • Material: Aluminum alloy panel + Stainless steel frame
  • Weight: 13.5 kg

🚀 Performance

  • Average Cutting Efficiency:
    • 200 mm thick concrete → 20 meters/hour
